KSB 125

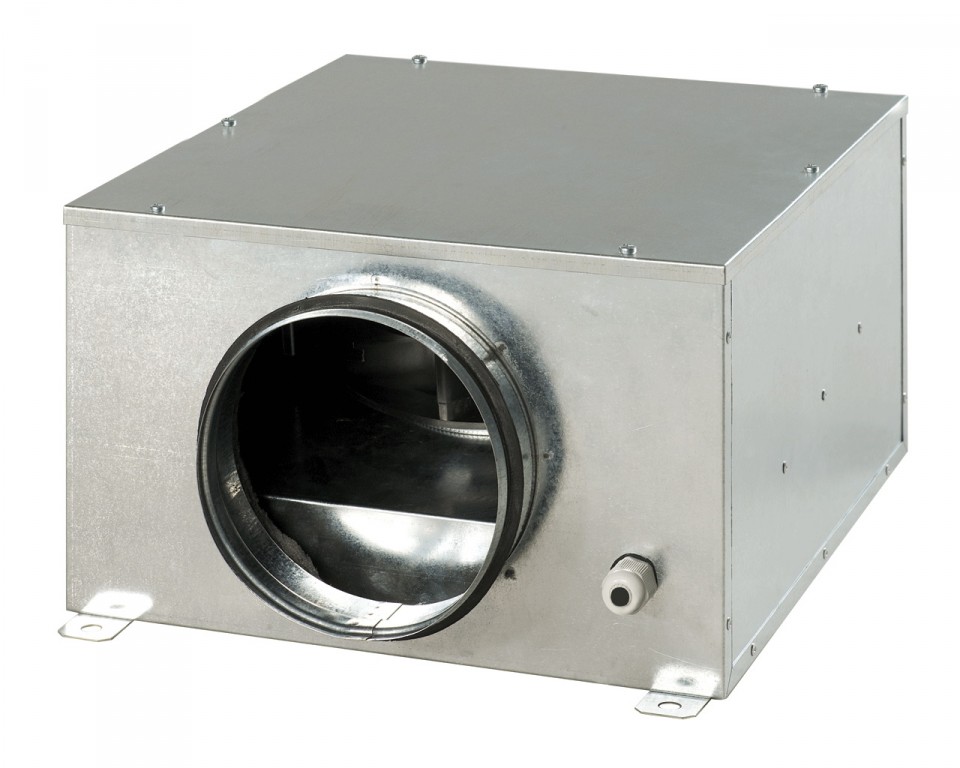

KSB 125

Compact inline sound- and heat-insulated centrifugal fan with back-curved impeller blades. Maximum capacity - 345 m3/h.

Show as:

Voltage / frequency:

OK

Products in this series  (7)

      KSB 100

      KSB 150

      KSB 160

      KSB 200

      KSB 200 S

      KSB 250

      KSB 315

      Technical parametersDiagramsSizesAccessoriesDocumentationSupport
      • SR series (round)

        SR series (round)

      • FB series (round)

        FB series (round)

      • KOM series

        KOM series

      • NKV series (round)

        NKV series (round)

      • NK series (round)

        NK series (round)

      • Speed controller RS-1-300

        Speed controller RS-1-300

      • Single phase speed controller RSA5E-2-P

        Single phase speed controller RSA5E-2-P

      • Speed controller RS-1-400

        Speed controller RS-1-400

      • Single phase speed controller RSA5E-…M

        Single phase speed controller RSA5E-…M

      • FBK series (round)

        FBK series (round)

      • Speed controller RS-…N (V)

        Speed controller RS-…N (V)


      ParameterValueUnit
      Phase
      1
      ˜
      Voltage
      220-240
      V
      Frequency
      50 / 60
      Hz
      Current
      0.32  /  0.34
      A
      Power consumption
      73  /  77
      W
      Maximum air capacity
      330  /  345
      194,37  /  203,205
      91,74  /  95,91
      0,09174  /  0,09591
      5511  /  5761,5
      m³/h
      CFM
      l/s
      m³/s
      l/m
      RPM
      2590  /  2700
      min -1
      Noise level at 3 m
      35  /  36
      [dBA]
      Maximum transported air temperature
      -25 +55
      оC
      Protection rating
      IP X4
      class
      Weight
      5.4
      kg
      Spigot size
      125
      mm
      SEC Class
      C
      KSB 125
      SizesØDB1HBLL1L2
      mm124280192322447380350

      E-mail

      Please, feel free to contact us.

      support@vents.ua

      Phohe

      Customer service.

      +380 44 406 36 25

      Online form

      Send a message center customer support.


      By using this form you confirm that you have read and agree with the site condition and terms.
      Send
      Download selectedDownload allMore downloads

      Specify the working point (click on the diagram). The operating point is automatically added to the printed version of the page (required to press print button).

      Sound-power level   Octave-frequency band [Hz]
        Hz   General   63   125   250   500   1000   2000   4000   8000
      LwA to inlet   dBA 64 51 51 54 56 54 55 53 51
      LwA to outlet dBA 65 50 49 59 55 61 61 58 51
      LwA to environment dBA 38 29 32 33 33 33 31 28 25
