VENTS AOW 30

Print version Save in PDF format

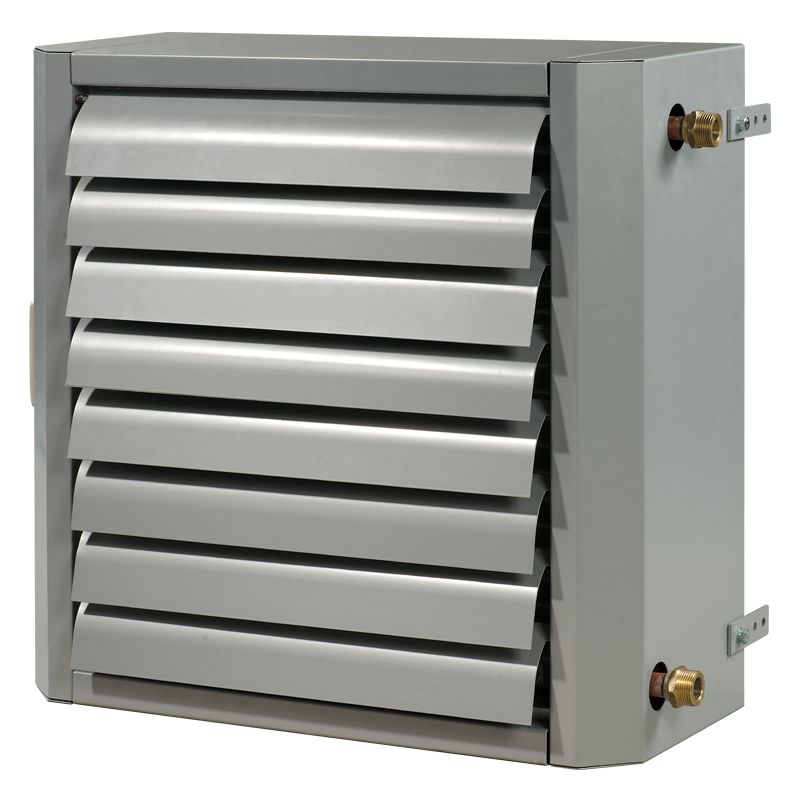

Air unit with the water heat exchanger. Maximum capacity - up to 3000 m³/h.

▲▼

Add to project

Add to compare

Description
Characteristics
Downloads
Dimensions
ADDITIONAL TECHNICAL DATA
Designation key
Accessories

Description

APPLICATION	CONTROL AND REGULATION
Designed for air heating or cooling by water heat medium with subsequent uniform air distribution by the fan and louvre shutters. The AOW1 unit is designed for air heating only. The units provide quick heating or cooling of large premises due to high efficient air heater and powerful fan and are suitable for local air heating or cooling of working areas in hangars or large industrial premises. Further application areas include workshops, garages, car showrooms, stock houses, trade facilities, super- and hypermarkets, shops, sport halls, conference halls, poultry and cattle farms, greenhouses and other similar premises. The unit design enables quick and easy mounting and reduces total investment costs for heating (cooling) system.	Both smooth or step speed control with a thyristor or autotransformer controller. Motor speed decrease allows reducing flow and value of heating or cooling energy transfer. The control unit UWT-1E is used for controlling the operation modes of the air heating (cooling) unit (available upon separate order). The control unit has three operation modes, i.e. three modes for speed control of AOW unit. The unit incorporates a switch with a light indicator, cable entry seals for cable connection, safety fuse for short circuit protection. The automation unit is designed for joint operation either with TST-1-300 series digital thermostats with a sensor display (the thermostat TSTD-1-300 is equipped with a remote control panel) or with RTS-1-400 series thermostats with LCD display (RTSD-1-400 is equipped with a remote control panel). The digital thermostats are available upon separate order. Install the thermostat in the same room where the AOW /AOW1 unit is installed. It is used to measure the indoor temperature and control the unit operation. For correct functioning of the unit install the thermostat in places that are not subjected to temperature fluctuations, i.e. close to windows, doors, hot-water radiators. One thermostat can be used for control of several air heating (cooling) units located in the same room.
DESIGN
AOW / AOW1 unit consists of the axial fan and aluminium-copper ribbed water heating coils located in steel casing with polymeric coating. The water coils are equipped with internally threaded pipes on the casig side for connection and supply of heat medium. The units are rated for operation at maximum operating pressure 1.6 Mpa (16 bar) and maximim heat medium temperature 100 °С. The AOW1 unit has a simplified design without a drain pipe and a drain pan.
MOUNTING	MOTOR
The unit is suitable for vertical installation on walls or columns or horizontal installation on ceiling (beams). See mounting accessories.	AC motors with external rotor and built-in thermal overheating protection with automatic restart.
AIR HEATING (COOLING) ADVANTAGES:
quick attaining of the set temperature in the premises, low system response time allows applying varying temperature conditions,	high thermal capacity, lower investment costs for air heating (cooling) system as compared to similar water heating (cooling) systems.


VENTS AOW unit greenhouse heating example	VENTS AOW unit garage cooling example

VENTS AOW unit stock house heating example

Characteristics

Parameter	AOW 30	Measurement unit
Voltage	230	V
Frequency	50	Hz
Fan power	191	W
Fan current	0.85	A
RPM	1440	min^-1
Sound pressure level at 3 m	55	dBА
Maximum water temperature	100	°С
Protection rating	IP 44	-
Number of water coil rows	2	-
Weight	40	kg
Insulation class	B	-
Air reach distance	12	mm

Files archieve

Downloads

Dimensions

Characteristics

Parameter	Value	Measurement unit
B	680	mm
B1	785	mm
H	655	mm
H1	518	mm
L	360	mm
L1	286	mm
K	G 3/4''	mm

ADDITIONAL TECHNICAL DATA

Designation key

Accessories

Temperature regulator VENTS RTS and RTSD More

Temperature regulator VENTS TST and TSTD More

Model	Air flow [m³/h]	Inlet air temp. [°С]	Temperature difference 90/70 °С				Temperature difference 80/60 °С				Temperature difference 70/50 °С				Temperature difference 60/40 °С
Model	Air flow [m³/h]	Inlet air temp. [°С]	Power [kW]	Outlet air temp. [°С]	Water flow [m³/h]	Water pressure loss [kPa]	Power [kW]	Outlet air temp. [°С]	Water flow [m³/h]	Water pressure loss [kPa]	Power [kW]	Outlet air temp. [°С]	Water flow [m³/h]	Water pressure loss [kPa]	Power [kW]	Outlet air temp. [°С]	Water flow [m³/h]	Water pressure loss [kPa]
AOW 30	3000	-15	48.4	27.2	2.09	7.4	42.0	22.0	1.91	6.0	36.6	17.0	1.58	4.7	31.0	11.7	1.30	3.5
		-10	45.4	30.3	2.02	6.6	39.0	25.2	1.69	5.3	33.7	20.0	1.51	4.0	27.6	14.6	1.19	2.9
		-5	42.4	33.4	1.91	5.9	36.7	28.2	1.58	4.6	30.0	22.9	1.40	3.4	24.0	17.4	1.12	2.4
		0	39.5	36.4	1.69	5.2	33.8	31.1	1.51	3.9	28.0	25.7	1.19	2.9	21.0	20.0	1.01	1.9
		5	36.7	39.4	1.58	4.5	30.9	34.0	1.40	3.4	25.0	28.5	1.12	2.4	19.0	22.7	0.79	1.5
		10	33.8	42.1	1.51	3.9	28.1	36.7	1.19	2.8	22.0	31.1	1.01	1.9	16.0	25.2	0.68	1.1
		15	31.0	44.9	1.40	3.3	25.3	40.0	1.12	2.3	19.4	33.7	0.90	1.5	13.0	27.5	0.61	0.7

Model	Air flow [m³/h]	Inlet air temp. [°С]	Temperature difference 7/12 °С
Model	Air flow [m³/h]	Inlet air temp. [°С]	Power [kW]	Outlet air temp. [°С]	Water flow [m³/h]	Water pressure loss [kPa]
AOW 30	3000	35	11.4	27.0	2.0	11.2
		30	7.3	22.9	1.3	5.0
		25	3.9	21.1	0.7	1.6
		20	2.4	17.7	0.4	0.7

Series	Rated power [kW]
VENTS AOW VENTS AOW1	25; 30; 45

Air heating unit model	Control unit	Digital thermostat		Mounting accessories
		with sensor display	with LCD display	Mounting angles	Mounting brackets
AOW 25	UWT-1E	TST-1-300 TSTD-1-300	RTS-1-400 RTSD-1-400	MKP-AOW	MK-AOW 25
AOW1 25					MK-AOW1 25
AOW 30					MK-AOW 30
AOW1 30					MK-AOW 25*
AOW 45					MK-AOW 45
AOW1 45					MK-AOW 30*
