VENTS VUT 2500 PB EC A21

Print version Save in PDF format

Ceiling mounted heat recovery air handling unit.
Rated air flow 2800 m³/h.

▲▼

Add to project

Add to compare

Description
Characteristics
Capacity diagram
Downloads
Dimensions
Additional characteristics
Designation key
Accessories

Description

DESCRIPTION

The intelligent arrangement of fans, heat recovery cores and filters, makes units slimline and easy to mount in small loft spaces, ceiling voids and false ceilings.

Such as electric & LPHW heaters, volume control dampers and Nox filters are available.

CASING

Casing panels made of zinc–aluminum coated steel with a 40 mm mineral wool heat- and sound-insulating layer.
Corrosion class C4 according to ISO 12944: class C4.

Each model available in left or right versions.
Service access on both sides and bottom.
Units are designed for indoor installation.

FILTER

Supply and extract air flows are purified through two panel filters of the filtering class G4.
The supply filter of the filtering class F7 can be provided optionally.

FANS

Fans with ERP-compliant EC motors.
Impellers with backward-curved blades.

Low power consumption at any speed, low noise and stable operation in any climate.

HEAT EXCHANGER

High-efficient counter-flow heat exchanger made of polystyrene.
Stainless steel drain pan on both supply and exhaust sides.

BYPASS

Automatic heat exchanger bypass damper with Belimo actuator provides active frost protection, free-heating and freecooling functions.

CONTROL AND AUTOMATION

The units are equipped with an integrated automation system.
The A21 controller enables integration of the unit into the Smart Home System or BMS (Building Management Systems).
The remote control panel is not included in the delivery set (purchased separately).
To control the unit via Wi-Fi, download the VENTS AHU mobile app.

Functions	A21
Wired remote control panel	Option (А22)
Control via a wired remote LCD control panel	Option (А25)
Wireless remote control panel	Option (А22 Wi-Fi)
BMS	RS-485 Wi-Fi Ethernet MODBUS (RTU, TCP)
Control via Wi-Fi using a mobile application	+
Vents Cloud Server service	+
Freeze protection	+
Bypass	Auto + manual
Week-scheduled operation	+
Filter replacement indication	According to filter timer
Filter replacement indication	According to filter clogging differential pressure switch readings
Alarm indication	+
Speed selection	+
Timers	+
RH% sensor	Option
CO2 sensor	Option
VOC sensor	Option
PM2.5 sensor	Option
Boost mode	+
Fireplace mode	+
Preheater connection	Option
Reheater connection	Option
Cooler connection	Option
Fire alarm sensor	Option
Minimum supply air temperature control	+

TEMPERATURE REGULATION

Automatic regulation of supply / extract air temperature (all units) or by room temperature (with A25 panel).
Automatic/manual by-pass regulation for freeheating, freecooling and frost protection.
Outputs for accessory A21 electric (triac PWM) or water (2-way/3way + pump) pre-heaters and/or re-heaters.

Cooling coil connection (for accessory DX or water coolers).
Water heater protection by back water temperature sensor and frost thermostat.
Electric coil overheating protection by two thermal contacts: 50°C with automatic reset and 90°C with manual restet.

OTHER FEATURES

Filter replacement indication by pressure switch.
Password protected engineering menu (only for A25 panel).

External damper connection.
Fire alarm input.

Characteristics

Parameter	VUT 2500 PB EC A21	Measurement unit
Phase	1	˜
Voltage	230	V
Power consumption	1480	W
Current	6.5	A
Frequency	50/60	Hz
Air capacity	2800	m³/h
RPM	2640	min^-1
Noise level at 3 m	37	dBА
Transported air temperature	-25 ... +40	°С
Spigot size	600х350	mm
Heating	electric heating, water heating	-
Casing material	aluzinc	-
Insulation	40 mm mineral wool	-
Filter: extract	G4 (F7*)	-
Filter: supply	G4 (F7*)	-
Weight	220	kg
Heat exchanger type	counter-flow	-
Heat exchanger material	polystyrene	-
SEC Class	A+	-
Mounting	flush mounting, ceiling mounting	-
Option*		-

Capacity diagram

Files archieve

Downloads

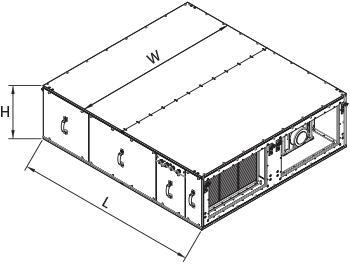

Dimensions

Characteristics

Parameter	Value	Measurement unit
L	1646	mm
W	1500	mm
H	480	mm

Additional characteristics

Designation key

Accessories

Accessories Similar products

VENTS NKV series (rectangular)More

VENTS SR series (rectangular)More

VENTS USWK series More

VENTS OKW series More

VENTS OKF series More

VENTS RRV series More

VENTS VVG series (rectangular)More

CO2 sensors More

Pressostat VENTS DTV 500 More

BELIMO TF230/TF24 More

Electro-mechanical humidistats VENTS HR-S More

Humidity sensor DPWC11200 More

VOC sensors DPWQ30600 More

CO2 sensor DPWQ40200 More

Control panel A25 More

Control panels A22/A22 WiFi More

VENTS VUT 1500 PB EC A21 More

VENTS VUT 3500 PB EC A21 More

VENTS VUT 1500 PB EC A21 More

VENTS VUT 3500 PB EC A21 More

A-weighted sound power level		Gen.	Octave-frequency band [Hz]								LpA, 3 m dBA	LpA, 1 m dBA
A-weighted sound power level		dBA	63	125	250	500	1000	2000	4000	8000	LpA, 3 m dBA	LpA, 1 m dBA
L_wA to supply inlet	dBA	59	63.2	69	62.9	56.2	49.2	42.3	36.7	32.9
L_wA to supply outlet	dBA	77.5	68.2	77	74.9	75.2	72.2	70.3	64.7	61.9
L_wA to exhaust inlet	dBA	59	63.2	69	62.9	56.2	49.2	42.3	36.7	32.9
L_wA to exhaust outlet	dBA	76.5	67.2	76	73.9	74.2	71.2	69.3	63.7	60.9
L_wA environment	dBA	58	62.2	69	63.9	48.2	41.2	39.3	32.7	30.9	37	47

Series	Rated air flow [m³/h]	Installation type	Bypass	Motor type	Automation	Accessories
VENTS VUT	1500; 2500; 3500	P: suspended installation	B: bypass	EC: synchronous electronically commutated motor	A21	By default equipped with a differential pressure switch for controlling the contamination of filters (DTV)

	Control panel	Control panel	Control panel	Electric heater	Electric heater	Electric heater

VUT 1500 PB EC A21	A22	A22 WiFi	A25	HE 600x350-5,1-1 A21	HE 600х350-9,0-3 А21	HE 600х350-12,0-3 А21
VUT 2500 PB EC A21
VUT 3500 PB EC A21

	Freon cooler	Water cooler	Water heater	Air damper	F7 cassette filter	G4 cassette filter

VUT 1500 PB EC A21	CDX 600х350-3	CW 600х350-3	HW 600х350-2	RRV P600x350	SF 196x384x40 F7 6	SF 196x384x40 G4 6
VUT 2500 PB EC A21					SF 196x384x40 F7 6	SF 196x384x40 G4 6
VUT 3500 PB EC A21					SF 253x603x48 F7 4	SF 253x603x48 G4 4

	Electric actuator	Three-way motorized ball valve with actuator	Water mixing set for water heater	Filter pressure switch	Flexible duct connection	Duct silencer	Round flange

VUT 1500 PB EC A21	TF 230	Belimo R3020-4-B1+LR24A-SR	USVK 3/4-4	DTV 500	VVG AV 600x350	SR 600x350	FP AV 600x350-315
VUT 2500 PB EC A21		Belimo 600x350 R3020-6P3-B1+LR24A-SR	USVK 3/4-6
VUT 3500 PB EC A21		Belimo 600x350 R3020-6P3-B1+LR24A-SR	USVK 3/4-6

	Room CO₂ sensor with indication	Duct CO₂ sensor	Humidity sensor	Humidity sensor	External VOC sensor (0-10V)	External CO₂ sensor (0-10V)	External humidity sensor (0-10V)

VUT 1500 PB EC A21	CO2-1	KCO2-2	HV2	HRS	DPWQ30600	DPWQ40200	DPWС11200
VUT 2500 PB EC A21
VUT 3500 PB EC A21
