    FlexiVent 1060150/52x8

    FlexiVent 1060150/52x8
    • FlexiVent 1060150/52x8
    zoom
    • FlexiVent 1060150/52x8
    Print versionSave in PDF format

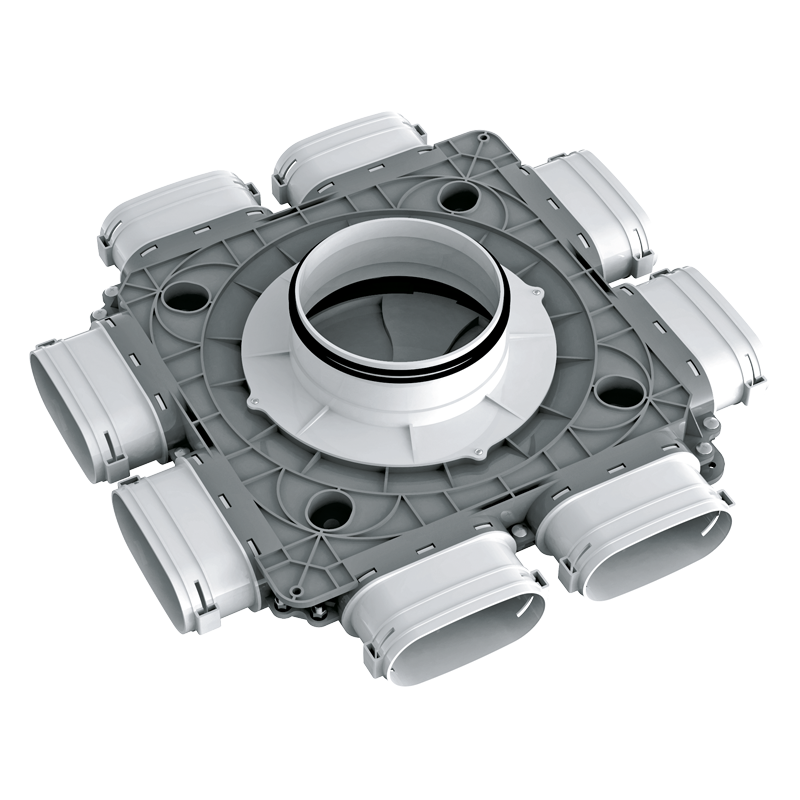

    Plastic air distribution box
    Add to project
    Add to compare
    • Description
    • Characteristics
    • Downloads
    • Dimensions
    Description
    Description
    FlexiVent 1060125/52x8
    • Connecting dimensions: 117×52 mm.
    • Ducts are fastened with FlexiVent 03 locks, included in the delivery.
    • To ensure air tightness class "C", a FlexiVent 0552 seal (purchased separately) is mounted on a duct.
    • Made of polypropylene (PP) with thermoplastic elastomer (SEBS).
    • Operating temperature: from -20 to +60 °C.
    Air flow [m³/h] Quantity of connected air ducts Air supply.
    Pressure drop [Pa]    		 Air exhaust.
    Pressure drop [Pa]
    30 1 4.3 4.8
    60 2 5.3 5.8
    90 3 7.0 7.6
    120 4 9.2 10.2
    150 5 12.2 13.4
    180 6 15.8 17.4
    210 7 20.1 22.1
    240 8 25.0 27.5
    FlexiVent 1060150/52x8
    • Connecting dimensions: 117×52 mm.
    • Ducts are fastened with FlexiVent 03 locks, included in the delivery.
    • To ensure air tightness class "C", a FlexiVent 0552 seal (purchased separately) is mounted on a duct.
    • Made of polypropylene (PP) with thermoplastic elastomer (SEBS).
    • Operating temperature: from -20 to +60 °C.
    Air flow [m³/h] Quantity of connected air ducts Air supply.
    Pressure drop [Pa]    		 Air exhaust.
    Pressure drop [Pa]
    30 1 4.2 4.6
    60 2 4.8 5.3
    90 3 5.9 6.5
    120 4 7.3 8.1
    150 5 9.2 10.1
    180 6 11.5 12.6
    210 7 14.2 15.6
    240 8 17.3 19.0
    FlexiVent 1060160/52x8
    • Connecting dimensions: 117×52 mm.
    • Ducts are fastened with FlexiVent 03 locks, included in the delivery.
    • To ensure air tightness class "C", a FlexiVent 0552 seal (purchased separately) is mounted on a duct.
    • Made of polypropylene (PP) with thermoplastic elastomer (SEBS).
    • Operating temperature: from -20 to +60 °C.
    Air flow [m³/h] Quantity of connected air ducts Air supply.
    Pressure drop [Pa]    		 Air exhaust.
    Pressure drop [Pa]
    30 1 4.2 4.6
    60 2 4.8 5.3
    90 3 5.9 6.5
    120 4 7.3 8.1
    150 5 9.2 10.1
    180 6 11.5 12.6
    210 7 14.2 15.6
    240 8 17.3 19.0
    FlexiVent 1060200/52x8
    • Connecting dimensions: 117×52 mm.
    • Ducts are fastened with FlexiVent 03 locks, included in the delivery.
    • To ensure air tightness class "C", a FlexiVent 0552 seal (purchased separately) is mounted on a duct.
    • Made of polypropylene (PP) with thermoplastic elastomer (SEBS).
    • Operating temperature: from -20 to +60 °C.
    Air flow [m³/h] Quantity of connected air ducts Air supply.
    Pressure drop [Pa]    		 Air exhaust.
    Pressure drop [Pa]
    30 1 4.1 4.6
    60 2 4.6 5.1
    90 3 5.3 5.9
    120 4 6.4 7.0
    150 5 7.7 8.5
    180 6 9.3 10.3
    210 7 11.3 12.4
    240 8 13.5 14.8
    Characteristics
    Characteristics
    Parameter FlexiVent 1060150/52x8
    		 Measurement unit
    System 52 -
    Device Air distribution box -
    Files archieve
    Downloads
    Select document type
    • Advertising and printing products
    • Certificates
    • Technical documentation
    Name
    Download
    Show
    "Modular air distribution system FlexiVent" installation instruction (V156EN-02) (pdf 29.02Mb)
    Download image "FlexiVent 1060125/52x8, FlexiVent 1060150/52x8, FlexiVent 1060160/52x8, FlexiVent 1060200/52x8" for your website (png 438.25Kb)
    Download high quality image "FlexiVent 1060125/52x8, FlexiVent 1060150/52x8, FlexiVent 1060160/52x8, FlexiVent 1060200/52x8" (psd 1.71Mb)
    "FlexiVent modular system" catalog 2023 (pdf 12.79Mb)
    Dimensions
    Characteristics
    FlexiVent 1060150/52x8
    Parameter Value Measurement unit
    Ø D 149 mm
    H 121 mm
    L 488 mm
