    Duct temperature sensors VENTS KDT-M / KDT-M1

    Duct temperature sensors VENTS KDT-M / KDT-M1
    Duct temperature sensors VENTS KDT-M / KDT-M1
    zoom
    Print versionSave in PDF format

    The duct temperature sensors are designed for installation in the air duct and temperature measurement of the air flow in the ventilation and air conditioning systems.

    Model features
    • For round ducts
    • For rectangular ducts
    • Electrical accessories
    Series of products
    VENTS KDT-M 100
    VENTS KDT-M 100
    VENTS KDT-M1 100
    VENTS KDT-M1 100
    VENTS KDT-M 150
    VENTS KDT-M 150
    VENTS KDT-M1 150
    VENTS KDT-M1 150
    VENTS KDT-M 200
    VENTS KDT-M 200
    VENTS KDT-M1 200
    VENTS KDT-M1 200
    VENTS KDT-M 400
    VENTS KDT-M 400
    VENTS KDT-M1 400
    VENTS KDT-M1 400
    • Description
    • Modifications
    • Downloads
    Description
    Description
    APPLICATION DESIGN
    • The duct temperature sensors are designed for installation in the air duct and temperature measurement of the air flow in the ventilation and air conditioning systems.

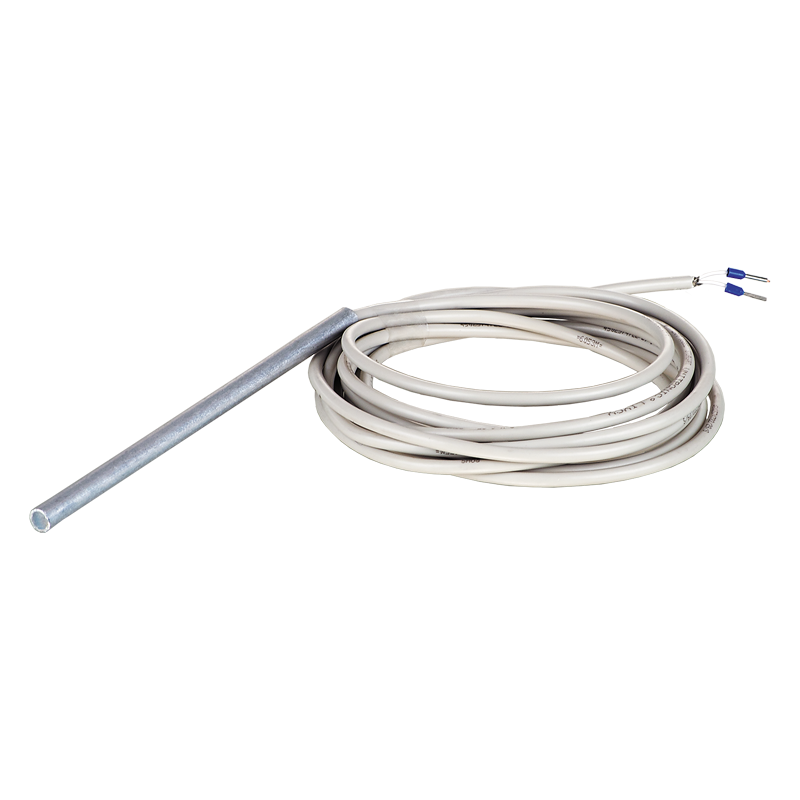

    • The sensing element, NTC thermometer resistor, is enclosed in the aluminium sleeve.
    • The thermometer resistor electric resistor depends on the temperature, the non-linear resistance.
    • Connection of the sensor to the controller is double-wired, regardless of polarity.
    • The KDT-M sensor delivery set includes a mounting flange with a fixing screw for its fixation to the air duct wall.
    • The sensors are supplied with a 2.5 m connecting cable. The immersion depth is adjusted for 100, 150, 200 or 400 mm.
    MOUNTING
    • Fixation with screws to the air duct wall by means of the flange with the sensing element located the air stream.
    Modifications
    Modification name
    KDT-M 100
    KDT-M1 100
    KDT-M 150
    KDT-M1 150
    KDT-M 200
    KDT-M1 200
    KDT-M 400
    KDT-M1 400
    +
    +
    +
    +
    +
    +
    +
    +
    Downloads
    Downloads
    Select document type
    • Advertising and printing products
    • Certificates
    • Technical documentation
    Name
    Download
    Show
    "KDT-M/ KDT-M1" product description 05-2014 (pdf 75.43Kb)
    Download high quality image "KDT-M/ KDT-M1" (psd 830.35Kb)
    Download image "KDT-M/ KDT-M1" for your website (png 170.66Kb)
