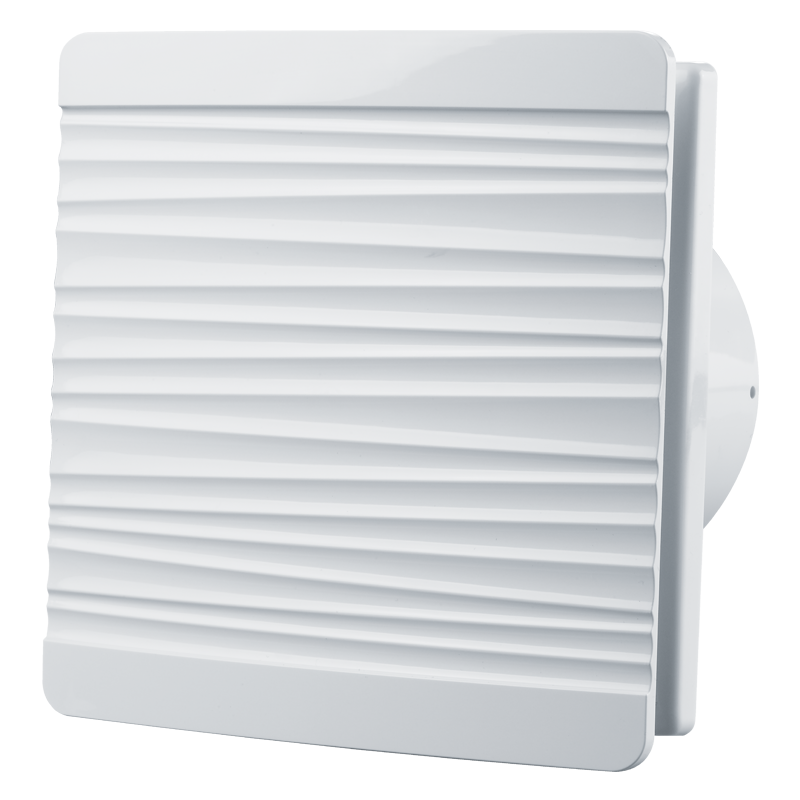

Axial energy-saving fans VENTS Flip One

Description
Modifications
Downloads
Certificates
Legend

Description

APPLICATIONS
Permanent or intermittent extract ventilation of shower rooms, bathrooms, kitchens and other residential premises. Ventilation of premises with high requirements to noise level.	Mounting into ventilation shafts or connection to Ø 100 mm air ducts.
DESIGN
Additional rubber seal realized by two-component molding allows the fans to be used in Zone 1. Modern design and aesthetic look. The casing, the impeller and the front panel are made of high-quality and durable UV-resistant plastic.	Advanced 7-blade aerodynamic profile of the mixed-flow impeller provides high air flow and pressure combined with low-noise operation. The fan is equipped with a specially designed backdraft damper to prevent back flow and heat losses during the fan standby. The fan exhaust spigot incorporates specially designed air rectifiers to reduce air turbulence, noise level and boost air pressure.
MOTOR
Reliable motor with low energy demand. Rated for continuous operation and is completely maintenance-free.	Integrated overheating protection.
CONTROL
Automatic control: Control with the electronic control unit BU-1-60. The control unit is supplied separately. Control with the turn-off delay timer T. The built-in turn-off delay timer enables operation of the fan within 2 up to 30 minutes after turning the fan off with a switch. Control with the timer T1. After turning of the external switch the turn-on delay timer is activated for 10 seconds up to 2 minutes. The fan remains turned off. After the fan is turned off with the external switch the fan keeps running within 2 up to 30 minutes according to the settings of the turn-off delay timer. Control with the timer and humidity sensor TH. If the indoor humidity exceeds the set humidity point adjustable from 60% to 90%, the fan switches automatically on and runs until the indoor humidity drops below the set humidity point. After that the fan continues running according to the timer settings and turns off.	Manual control: Manual operation with a room light switch (not included in the delivery set). Operation with a built-in pull cord switch V. Not applicable in case of the ceiling mounting.
MOUNTING FEATURES
Direct installation inside a ventilation shaft. Flexible air ducts may be used in case of remote location of the ventilation shaft. The air duct is connected to the exhaust spigot with a fixing clamp.	Wall mounting with screws. Suitable for ceiling mounting.
MOUNTING EXAMPLE

Modifications

Modification name

VENTS 100 Flip One L

VENTS 100 Flip One T L

VENTS 100 Flip One T1 L

VENTS 100 Flip One TH L

VENTS 100 Flip One V L

VENTS 100 Flip One L (220 V/60 Hz)

VENTS 100 Flip One T L (220 V/60 Hz)

VENTS 100 Flip One T1 L (220 V/60 Hz)

VENTS 100 Flip One TH L (220 V/60 Hz)

VENTS 100 Flip One V L (220 V/60 Hz)

Ball bearing motor

Turn-off delay timer

Turn-on delay timer

Humidity sensor

Pull-cord switch

Downloads

Certificates

<p>
Mark of conformity to the European Quality Standards and Electrical Safety issued by Association for Technical Inspection (Technischer Überwachungsverein, Germany).</p>

Mark of conformity to the European Quality Standards and Electrical Safety issued by Association for Technical Inspection (Technischer Überwachungsverein, Germany).

Mark of conformity to the Polish Quality Standards and electrical safety issued by PCBC (Polish center for testing and certification).

Mark of conformity to the Slovak Quality Standards and electrical safety issued by EVPU (Slovakia).

Mark of conformity to the Ukrainian Quality Standards and electrical safety issued by UkrTEST.

<p>
Mark of conformity of the goods subject to obligatory certification in DSTR system as well as technical norms and standards acting in Russian Federation. Confirmed by the RosTEST certificates (Moscow). </p>

Mark of conformity of the goods subject to obligatory certification in DSTR system as well as technical norms and standards acting in Russian Federation. Confirmed by the RosTEST certificates (Moscow).

Insulation class: double insulation.

CE mark means that the equipment is produced in compliance with the quality and safety standards provided by EU regulations for the given product type (marked by manufacturer).

Equipment protection rating.

Legend

PICTURE SYMBOL	DESIGNATION	MODIFICATION DESCRIPTION
	Flip One L	Modification with a ball bearing motor for long service life (around 40 000 operating hours). Installation at any angle is possible. The ball bearings require no maintenance and are greased for the entire service life.
	Flip One T	Modification with a regulated turn-on delay timer.
	Flip One T1	Modification with a turn-on delay timer regulated from 10 seconds to 2 minutes and a turn-off delay timer regulated from 2 up to 30 minutes.
	Flip One TH	Modification with a turn-off delay timer regulated from 2 up to 30 minutes and a humidity sensor regulated from 60% up to 90%.
	Flip One V	Modification with a pull-cord switch.

VENTS Flip One series
