Fans with integrated light VENTS Lumis

Description
Modifications
Capacity diagram
Downloads
Certificates
Legend
Video

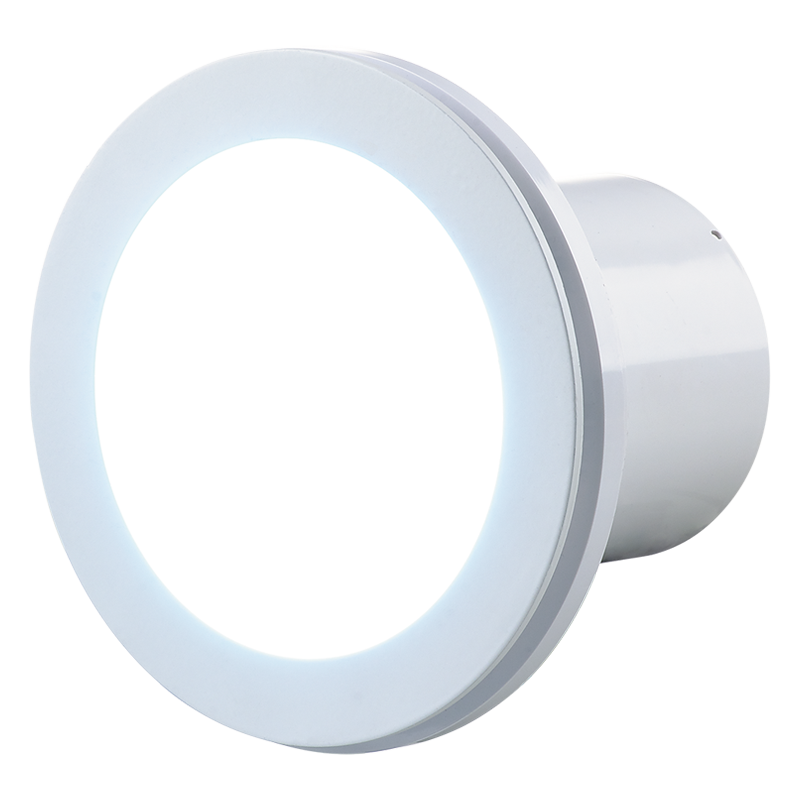

Description

APPLICATIONS
Continuous or periodic exhaust ventilation of bathroom, showers, kitchens and other utility spaces. Ventilation shaft mounting or duct connection.	Low to medium air flow motion for short distances at low air resistance. Compatible with Ø 100 mm air ducts.
DESIGN
Modern design and aesthetic look. The casing and the impeller are made of high-quality durable ABS plastic, UV resistant. The impeller design enhances the fanefficiency and prolongs the motor service life.	The 10 watt LED backlight lamp is integrated in the casing with a working life of 40 000 hours. The lamp colour temperature is 3000 K (warm light). Protection rating IP 24.
MOTOR
Reliable motor with low energy demand. Designed for continuous operation and requires no maintenance.	Equipped with overheating protection.
CONTROL
Manual: The fan is controlled with a room light switch (not included in the delivery). Speed control with a thyristor speed controller, refer to the Electric accessories. Several fans may be connected to one controller.	Automatic: Speed control with a an electronic control unit BU-1-60, refer to the Electric accessories. The control unit is available upon separate order.
MOUNTING FEATURES
The fan is mounted directly into the ventilation shaft. Flexible duct connection is recommended in case of the remote ventilation shaft location. The air duct is connected to the fan exhaust flange through a clamp.	Fixing to wall with screws. Suitable for ceiling mounting.

Modifications

Modification name

Vents Lumis 100

VENTS Lumis 100 K

VENTS Lumis 100 L

VENTS Lumis 100

Backdraft damper

Ball bearing motor

High-powered fan

Capacity diagram

Selection method:
Air flow:
Pressure:

Operating point

Air flow: --
Pressure: ---

Downloads

Certificates

<p>
Mark of conformity to the European Quality Standards and Electrical Safety issued by Association for Technical Inspection (Technischer Überwachungsverein, Germany).</p>

Mark of conformity to the European Quality Standards and Electrical Safety issued by Association for Technical Inspection (Technischer Überwachungsverein, Germany).

<p>
CE mark means that the equipment is produced in compliance with the quality and safety standards provided by EU regulations for the given product type (marked by manufacturer).</p>

CE mark means that the equipment is produced in compliance with the quality and safety standards provided by EU regulations for the given product type (marked by manufacturer).

Mark of conformity to the Ukrainian Quality Standards and electrical safety issued by UkrTEST.

Insulation class: double insulation.

Applicance protection class.

<p>The EurAsian Conformity mark is a certification mark to indicate that the products conform to all technical regulations of the Eurasian Customs Union.</p>

The EurAsian Conformity mark is a certification mark to indicate that the products conform to all technical regulations of the Eurasian Customs Union.

Legend

Picture symbol		Designation		Modification description
		Lumis 100 K		The fan is equipped with a back valve to prevent air back drafting.
		Lumis 100 L		The motor is equipped with ball bearings for long service life (appr. 40 thousand hours) and fan mounting at any angle. The bearings are maintenance-free and contain enough grease for the entire operating period.
		Lumis 100 turbo		High-powered motor.

Video

VENTS Lumis series
