VENTS Micra 110 V1 ERV

• High efficiency ventilation of a single room or a small appartment.
• Flush or surface mounting option.

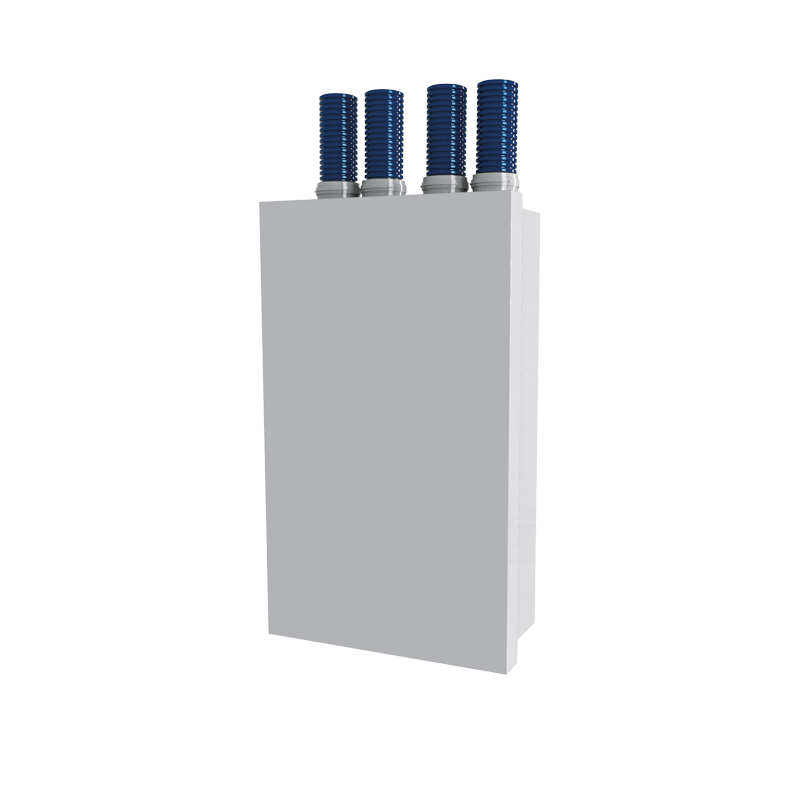

• Optional connection of supply and extract 75 mm semi-rigid air ducts for flush mounted Micra 110 V1 unit.

• Optional connection of 100 mm extract air duct for surface mounted Micra 110 unit.
• Low noise level from 10 dBA at 3 m.
• High level of wind protection.
• Clean air with an ISO ePM1 65% / F7 supply filter.
• Easy installation.

• The casing is made of sheet metal, painted white, with a layer of heat and sound insulation.
• The modern design allows Micra 110 to fit harmoniously into any interior.
• The front panel opens easily for filter maintenance.
• The unit is equipped with two 100 mm spigots for air intake and exhaust.

• An automatic supply and axhaust air dampers are provided to prevent drafts when the unit is switched off.

• The unit is equipped with high-efficient electronically commutated (EC) motors with an external rotor equipped with impellers with forward-curved blades.
• Such motors are currently the most advanced solution in the field of energy saving.
• EC motors are characterized by high performance and optimal control over the entire range of speeds.
• The undoubted advantage of electronically commutated motors is high efficiency (up to 90%).

• Supply air is cleaned by a coarse 90 % / G4 panel filter. An ePM1 65 % / F7 filter can be installed as an option.
• Extract air purification is performed by a coarse 90 % / G4 cassette filter.

• Micra 110 units are equipped with a counter-flow heat exchanger.
• Micra 110 ERV units are equipped with a heat exchanger, which is made of enthalpy membrane and transfers heat and moisture.
• In the cold season the extract air heat and moisture are transferred to the supply air stream through the enthalpy membrane reducing the heat losses through ventilation.
• In the warm season, the heat and moisture of fresh intake air are transferred through the enthalpy membrane to the extract air. This allows for a considerable reduction of the supply air temperature and humidity which, in turn, reduces the air conditioning load.

1. Extract grille;

2. Supply grille;

3. Exhaust fan;

4. Automatic air shutter;

5. Drain pipe (HRV version);

6. Supply filter;

7. Supply fan;

8. Controller;

9. HRV or ERV core;

10. Extract filter.

1. Extract ducts;

2. Supply ducts;

3. Exhaust fan;

4. Air shutter (option);

5. Drain pipe (HRV version);

6. Supply filter;

7. Supply fan;

8. Controller;

9. HRV or ERV heat exchanger;

10. Extract filter.
