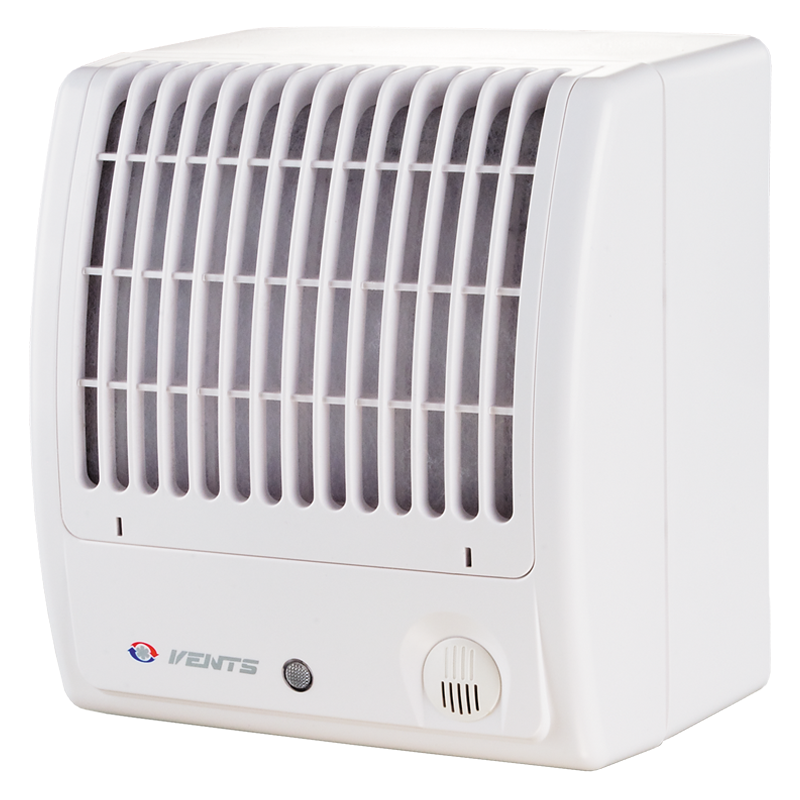

Centrifugal single-speed fans with a built-in filter for exhaust ventilation with the air capacity of up to 122 m³/h. Compatible with 100 mm air ducts.

Model features

Series of products

Vents 100 CF

Vents 100 CF turbo

Vents 100 CF turbo (120/60)

Vents 100 CF 12

Vents 100 CFVents 100 CF turboVents 100 CF turbo (120/60)

Vents 100 CF 12

Description
Modifications
Capacity diagram
Downloads
Certificates
Legend
Example of installation

Description

APPLICATIONS
Continuous or periodic exhaust ventilation of bathroom, showers, kitchens and other utility spaces. Ventilation shaft mounting or duct connection.		Designed for high-resistance ventilation duct systems. Compatible with 100 mm air ducts.
DESIGN
Modern design and aesthetic look. The casing and the impeller are made of high-quality durable ABS plastic, UV resistant. The easy to use removable grille with a filter element protects the fan internal components against grease and dust penetration and makes it suitable for kitchen exhaust ventilation. The basic CF fan modification includes a dust filter. Aluminium grease filter configurations are also available (CFA model).		The centrifugal fan impeller has forward curved blades for high pressure and low noise levels. Protection rating IP 24.

MOTOR
Reliable and low-watt single-phase electric motor. The basic motor modification includes plain bearings. The „turbo“ modification includes the motor equipped with ball bearings mounted on specially designed vibration dampers.		Designed for continuous operation and requires no maintenance. Equipped with overheating protection.
CONTROL
Manual: The fan is controlled by a room light switch. It is not included in the delivery package. The fan is controlled by the built-in pull cord switch V. Not applied in case of ceiling mounting. Speed control is possible through a thyristor speed controller (see Electrical Accessories). Several fans may connected to the same regulator unit. Speed controllers can not be connected to the fans with T, TH, TP, VT, VTH modification.		Automatic: By the electronic control unit BU-1-60 (see Electrical Accessories). The control unit is supplied separately.
MOUNTING FEATURES
Suitable for external or built-in mounting. Flexible duct application is recommended in case of remote location of the ventilation shaft. The air duct is connected to the fan exhaust flange through a clamp. Fixed to the wall by self-tapping screws or fixing brackets.		Suitable for ceiling mounting. For 12 V low-voltage motor fan connection to 220 V / 50 Hz power mains use the step-down transformer TRF 220/12-25 that is available upon separate order.
MOUNTING EXAMPLES

	Wall surface mounting	Wall flush mounting

Modifications

Modification name

VENTS 100 CFTH turbo

VENTS 100 CF turbo TP (120/60)

VENTS 100 CF turbo VTH (120/60)

VENTS 100 CF turbo VT (120/60)

VENTS 100 CF turbo V (120/60)

VENTS 100 CF turbo TH (120/60)

VENTS 100 CF turbo T (120/60)

VENTS 100 CFTP turbo

VENTS 100 CFVTH turbo

VENTS 100 CFVT turbo

VENTS 100 CFV turbo

Vents 100 CF

VENTS 100 CFT turbo

VENTS 100 CF turbo

VENTS 100 CFTP

VENTS 100 CFVTH

VENTS 100 CFVT

VENTS 100 CFV

VENTS 100 CFTH

VENTS 100 CFT

Vents 100 CF 12

Vents 100 CF turbo (120/60)

Timer

Humidity sensor

Pull-cord switch

Motion sensor

Ball bearing motor

High-powered fan

Safe voltage (12 V)

Capacity diagram

Selection method:
Air flow:
Pressure:

Operating point

Air flow: --
Pressure: ---

Downloads

Certificates

<p>
Mark of conformity to the European Quality Standards and Electrical Safety issued by Association for Technical Inspection (Technischer Überwachungsverein, Germany).</p>

Mark of conformity to the European Quality Standards and Electrical Safety issued by Association for Technical Inspection (Technischer Überwachungsverein, Germany).

<p>
CE mark means that the equipment is produced in compliance with the quality and safety standards provided by EU regulations for the given product type (marked by manufacturer).</p>

CE mark means that the equipment is produced in compliance with the quality and safety standards provided by EU regulations for the given product type (marked by manufacturer).

Mark of conformity to the Ukrainian Quality Standards and electrical safety issued by UkrTEST.

Insulation class: double insulation.

Applicance protection class.

<p>The EurAsian Conformity mark is a certification mark to indicate that the products conform to all technical regulations of the Eurasian Customs Union.</p>

The EurAsian Conformity mark is a certification mark to indicate that the products conform to all technical regulations of the Eurasian Customs Union.

Legend

Picture symbol		Designation		Modification description
		CFА		Fan with an aluminium grease filter.
		CF 100 turbo		High-powered motor. The motor is equipped with ball bearings for long service life (appr. 40 thousand hours) and mounted on specially designed vibration mounting. The bearings are maintenance-free and contain enough grease for the entire operating period.
		CF 100 Т		Equipped with a regulated timer with the operating time from 2 to 30 minutes.
		CF 100 TH		Equipped with a timer with the operating time from 2 to 30 minutes and a humidity sensor with the threshold value from 60 to 90%.
		CF 100 V		Equipped with a pull cord switch.
		CF 100 VТ		Equipped with a pull cord switch and a regulated timer with the operating time adjustable from 2 to 30 minutes.
		CF 100 VТН		Equipped with a pull cord switch, regulated timer with the operating time adjustable from 2 to 30 minutes and a humidity sensor with the operating threshold range from 60% to 90%.
		CF 100 ТР		Equipped with a regulated timer and a motion sensor with the sensitivity area from 1 to 4 m and the detection angle up to 100°.
		CF 100 12		Modification with low-voltage motor. 12 V AC power supply.
