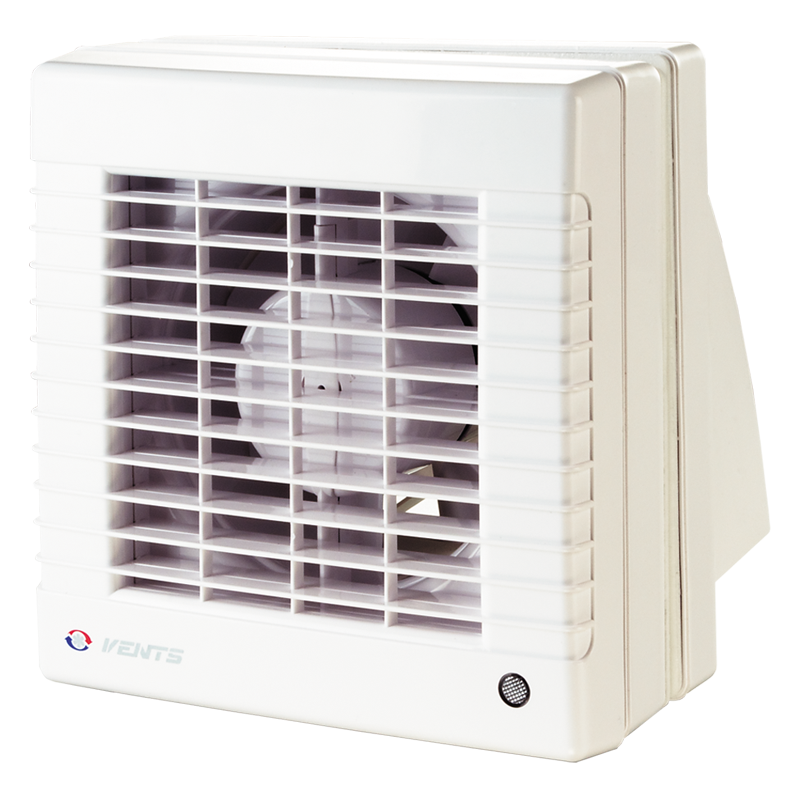

VENTS М1ОК2 series

VENTS М1ОК2 series

Axial window fan with a backdraft damper for exhaust ventilation with the capacity up to 232 m3/h. The fan is equipped with an external hood.

Model features
  • Timer
  • Pull-cord switch
  • Ball bearings
  • Description
  • Modifications
  • Capacity diagram
  • Downloads
  • Certificates
  • Legend
  • Example of installation
Description
Description
APPLICATIONS
  • Continuous or periodic exhaust ventilation of bathroom, showers, kitchens and other utility spaces.
  • For mounting in windows.
DESIGN
  • Modern design and aesthetic look.
  • The casing and the impeller are made of high-quality durable ABS plastic, UV resistant.
  • The intellectual impeller design makes the fan efficiency high and the service life long.
  • The fan and motor are specially designed for silent operation.
  • Fan is equipped with a backdraft damper for back flow preventing.
  • The fan is equipped with an external hood.
  • Protection rating IP 24.
MOTOR
  • Reliable and low-watt electric motor.
  • Designed for continuous operation and requires no maintenance.
  • Equipped with overheating protection.
CONTROL

Manual:

  • The fan is controlled by a room light switch. It is not included in the delivery package.
  • The fan is controlled by the built-in pull cord switch V.
  • Speed control is possible through a thyristor speed controller (see Electrical Accessories). Several fans may connected to the same controller. Speed controllers can not be connected to the fans with TTHTPVTVTH modification.

Automatic:

  • By the electronic control unit BU-1-60 (see Electrical Accessories). The control unit is supplied separately.
  • By the timer T (the built-in run-out timer enables the fan operation within 2 to 30 minutes after the fan switching off).
MOUNTING FEATURES
  • The fan is mounted directly into the window opening.
  • For 12 V low-voltage motor fan connection to 220 V / 50 Hz power mains use the step-down transformer TRF 220/12-25 that is available upon separate order.
MOUNTING EXAMPLE

Modifications
Safe voltage (12 V)
High-powered fan
-
-
-
-
+
+
+
Capacity diagram
Capacity diagram
  • Selection method:
  • Air flow:
  • Pressure:
Operating point
  • Air flow: --
  • Pressure: ---
Downloads
Downloads
Select document type
  • Advertising and printing products
  • Certificates
  • Technical documentation
Name
"VENTS М1ОК2" product description 09-2015 (pdf 820.92Kb)
"VENTS MAO1, MAO2, M1OK2" user's manual 2011 (V01-MAO-02) (pdf 2.7Mb)
Download high quality image "VENTS M1OK2" (psd 2.7Mb)
"VENTS domestic fans" user's manual 07-2023 (V01EN_16-01) (pdf 3.9Mb)
Download image "VENTS M1OK2" for your website (png 617.64Kb)
Certificates
Certificates
<p>
	Mark of conformity to the European Quality Standards and Electrical Safety issued by Association for Technical Inspection (Technischer Überwachungsverein, Germany).</p>

Mark of conformity to the European Quality Standards and Electrical Safety issued by Association for Technical Inspection (Technischer Überwachungsverein, Germany).

<p>
	CE mark means that the equipment is produced in compliance with the quality and safety standards provided by EU regulations for the given product type (marked by manufacturer).</p>

CE mark means that the equipment is produced in compliance with the quality and safety standards provided by EU regulations for the given product type (marked by manufacturer).

<p>
	Mark of conformity to the Ukrainian Quality Standards and electrical safety issued by UkrTEST.</p>

Mark of conformity to the Ukrainian Quality Standards and electrical safety issued by UkrTEST.

<p>
	Insulation class: double insulation.</p>

Insulation class: double insulation.

<p>
	Applicance protection class.</p>

Applicance protection class.

<p>The EurAsian Conformity mark is a certification mark to indicate that the products conform to all technical regulations of the Eurasian Customs Union.</p>

The EurAsian Conformity mark is a certification mark to indicate that the products conform to all technical regulations of the Eurasian Customs Union.

Legend
Legend
Picture symbol   Designation   Modification description
  М1OK2 L   The motor is equipped with ball bearings for long service life (appr. 40  thousand hours) and fan mounting at any angle. The bearings are maintenance-free and contain enough grease for the entire operating period.
  М1OK2 turbo   High-powered motor.
  М1OK2 12   Modification with low-voltage motor. 12 V AC power supply.
  М1OK2 Т   Equipped with a regulated timer with the operating time from 2 to 30 minutes.
  М1OK2 V   Equipped with a pull cord switch.
  М1OK2 VТ   Equipped with a pull cord switch and a regulated timer with the operating time adjustable from 2 to 30 minutes.
Example of installation
Example of installation
