VENTS X1 series

Print version Save in PDF format

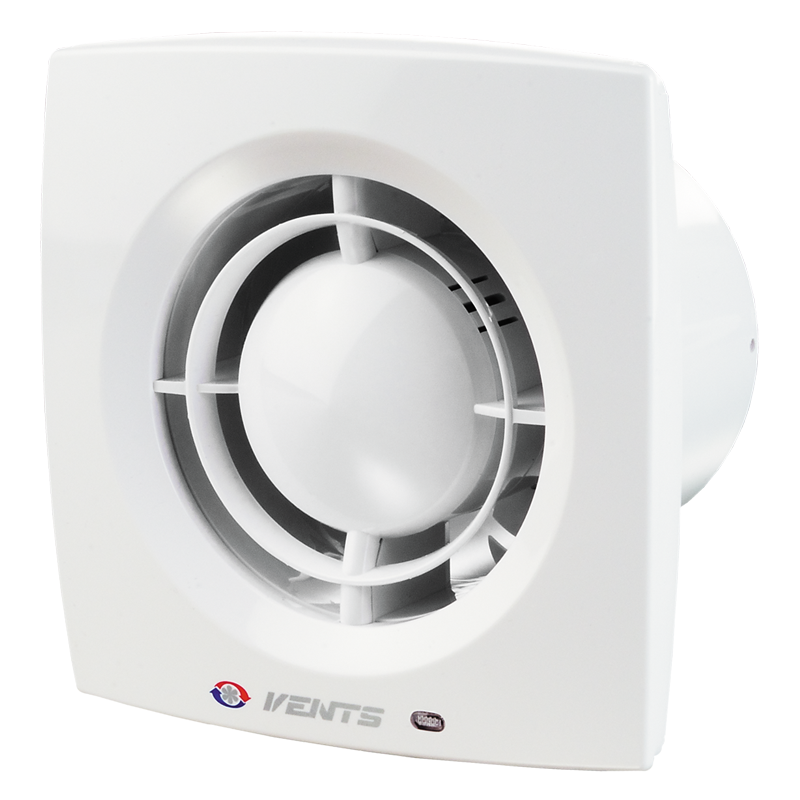

Axial fans for exhaust ventilation with the capacity up to 345 m³/h.

Model features

Series of products

VENTS 100 X1

VENTS 125 X1

VENTS 150 X1

VENTS 125 X1 turbo

VENTS 150 X1 turbo

VENTS 100 X1 12

VENTS 125 X1 12

VENTS 150 X1 12

VENTS 100 X1 (220/60)

VENTS 125 X1 (220/60)

VENTS 150 X1 (220/60)

VENTS 100 X1 turbo (220/60)

VENTS 125 X1 turbo (220/60)

VENTS 100 X1 (120/60)

VENTS 125 X1 (120/60)

VENTS 150 X1 turbo (220/60)

VENTS 120 X1

VENTS 120 X1 (220/60)

VENTS 120 X1 12

VENTS 120 X1 turbo

VENTS 120 X1 turbo (220/60)

Description
Modifications
Capacity diagram
Downloads
Certificates
Designation key

Description

APPLICATIONS
Continuous or periodic exhaust ventilation of bathroom, showers, kitchens and other utility spaces. Ventilation shaft mounting or duct connection.	Low to medium air flow motion for short distances at low air resistance. Compatible with 100, 120, 125 and 150 mm air ducts.
DESIGN
Modern design and aesthetic look. The casing and the impeller are made of high-quality durable ABS plastic, UV resistant.	The intellectual impeller design makes the fan efficiency high and the service life long. Protection rating IP24.
MOTOR
Reliable and low-watt electric motor. Designed for continuous operation and requires no maintenance.	Equipped with overheating protection.
CONTROL
Manual: The fan is controlled by a room light switch. It is not included in the delivery package. The fan is controlled by the built-in pull cord switch V. Not applied in case of ceiling mounting. Speed control is possible through a thyristor speed controller (see Electrical Accessories). Several fans may connected to the same controller. Speed controllers can not be connected to the fans with T, TH, TP, VT, VTH modification.	Automatic: By the electronic control unit BU-1-60 (see Electrical Accessories). The control unit is supplied separately. By the timer T (the built-in turn-off delay timer enables the fan operation within 2 to 30 minutes after the fan switching off). By the humidity sensor and timer TH (if the humidity level in the room exceeds the sensor threshold adjustable value within 60-90% the fan switches automatically on and operates until the humidity level drops to the standard level, after that the fan continues operating within the time period according to the timer setting, then shuts down).
MOUNTING FEATURES
The fan is mounted directly into the ventilation shaft. Flexible duct application is recommended in case of remote location of the ventilation shaft. The air duct is connected to the fan exhaust flange through a clamp. Fixed to the wall by self-tapping screws.	Suitable for ceiling mounting. For 12 V low-voltage motor fan connection to 220 V / 50 Hz power mains use the step-down transformer TRF 220/12-25 that is available upon separate order.
MOUNTING EXAMPLE
