VENTS M1 Series

Print version Save in PDF format

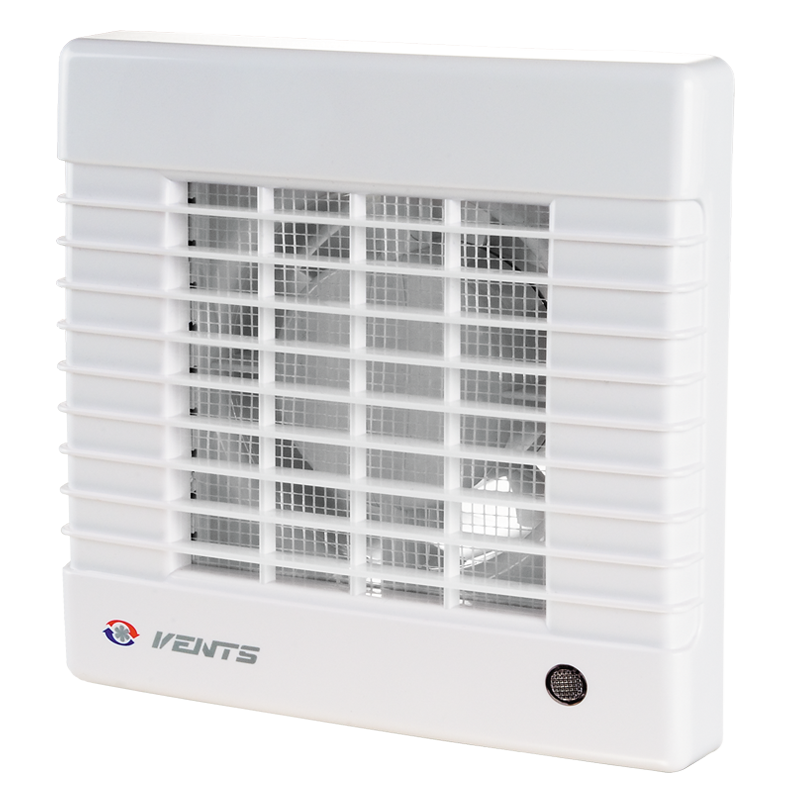

Axial fans for exhaust ventilation with the capacity up to 345 m³/h. Compatible with 100, 125 or 150 mm air ducts.

Model features

Series of products

VENTS 100 M1

VENTS 125 M1

VENTS 150 M1

VENTS 100 M1 turbo

VENTS 125 M1 turbo

VENTS 150 M1 turbo

VENTS 100 M1 12

VENTS 125 M1 12

VENTS 150 M1 12

VENTS 100 M1 press

VENTS 125 M1 press

VENTS 150 M1 press

VENTS 100 M1VENTS 125 M1VENTS 150 M1

VENTS 100 M1 turboVENTS 125 M1 turboVENTS 150 M1 turbo

VENTS 100 M1 12VENTS 125 M1 12VENTS 150 M1 12

VENTS 100 M1 pressVENTS 125 M1 pressVENTS 150 M1 press

Description
Modifications
Capacity diagram
Downloads
Certificates
Legend

Description

APPLICATIONS
Continuous or periodic exhaust ventilation of bathroom, showers, kitchens and other utility spaces. Ventilation shaft mounting or duct connection.	Low to medium air flow motion for short distances at low air resistance. Compatible with 100, 125 and 150 mm air ducts.
DESIGN
Modern design and aesthetic look. The casing and the impeller are made of high-quality durable ABS plastic, UV resistant.	The intellectual impeller design makes the fan efficiency high and the service life long. Insect screen. Protection rating IP 34.
MOTOR
Reliable and low-watt electric motor. Designed for continuous operation and requires no maintenance.	Equipped with overheating protection.
CONTROL
Manual: The fan is controlled by a room light switch. It is not included in the delivery package. The fan is controlled by the built-in pull cord switch V. Not applied in case of ceiling mounting. Speed control is possible through a thyristor speed controller (see Electrical Accessories). Several fans may connected to the same controller. Speed controllers can not be connected to the fans with T, TH, TP, VT, VTH modification.	Automatic: By the electronic control unit BU-1-60 (see Electrical Accessories). The control unit is supplied separately. By the timer T (the built-in run-out timer enables the fan operation within 2 to 30 minutes after the fan switching off). By the humidity sensor and timer TH (if the humidity level in the room exceeds the sensor threshold adjustable value within 60-90% the fan switches automatically on and operates until the humidity level drops to the standard level, after that the fan continues operating within the time period according to the timer setting, then shuts down). By the motion sensor and the timer TP (in case of motion detection the fan switches automatically on and operates within the set time period from 2 to 30 minutes. The motion sensitivity area is up to 4 meters and the maximum detection angle is 100°.
MOUNTING FEATURES
The fan is mounted directly into the ventilation shaft. Flexible duct application is recommended in case of remote location of the ventilation shaft. The air duct is connected to the fan exhaust flange through a clamp.	Fixed to the wall by self-tapping screws. For 12 V low-voltage motor fan connection to 220 V / 50 Hz power mains use the step-down transformer TRF 220/12-25 that is available upon separate order.
MOUNTING EXAMPLE

Modifications

Modification name

VENTS 150 M1TH

VENTS 125 M1VT

VENTS 125 M1V

VENTS 125 M1TH

VENTS 125 M1T

VENTS 150 M1VTH L

VENTS 150 M1VT L

VENTS 150 M1 L

VENTS 150 M1TP

VENTS 150 M1VTH

VENTS 150 M1VT

VENTS 150 M1V

VENTS 125 M1VTH

VENTS 150 M1T

VENTS 100 M1V turbo

VENTS 125 M1V turbo

VENTS 150 M1V turbo

VENTS 100 M1T press

VENTS 100 M1TH press

VENTS 100 M1V press

VENTS 100 M1VT press

VENTS 100 M1VTH press

VENTS 100 M1TP press

VENTS 100 M1 K

VENTS 125 M1

VENTS 150 M1

VENTS 100 M1 turbo

VENTS 125 M1 turbo

VENTS 150 M1 turbo

VENTS 100 M1 12

VENTS 125 M1 12

VENTS 150 M1 12

VENTS 100 M1 press

VENTS 125 M1 press

VENTS 150 M1 press

VENTS 100 M1

VENTS 100 M1 L

VENTS 100 M1TP

VENTS 100 M1VTH

VENTS 100 M1VT

VENTS 100 M1V

VENTS 100 M1TH

VENTS 100 M1T

VENTS 125 M1 K

VENTS 125 M1 L

VENTS 125 M1TP

Backdraft damper

Timer

Motion sensor

Ball bearing motor

Humidity sensor

Pull-cord switch

High-powered fan

Safe voltage (12 V)

5-blade low-noise impeller

Capacity diagram

Selection method:
Air flow:
Pressure:

Operating point

Air flow: --
Pressure: ---

Downloads

Certificates

<p>
Mark of conformity to the European Quality Standards and Electrical Safety issued by Association for Technical Inspection (Technischer Überwachungsverein, Germany).</p>

Mark of conformity to the European Quality Standards and Electrical Safety issued by Association for Technical Inspection (Technischer Überwachungsverein, Germany).

<p>
CE mark means that the equipment is produced in compliance with the quality and safety standards provided by EU regulations for the given product type (marked by manufacturer).</p>

CE mark means that the equipment is produced in compliance with the quality and safety standards provided by EU regulations for the given product type (marked by manufacturer).

Mark of conformity to the Ukrainian Quality Standards and electrical safety issued by UkrTEST.

Insulation class: double insulation.

Equipment protection rating.

<p>The EurAsian Conformity mark is a certification mark to indicate that the products conform to all technical regulations of the Eurasian Customs Union.</p>

The EurAsian Conformity mark is a certification mark to indicate that the products conform to all technical regulations of the Eurasian Customs Union.

Legend

Picture symbol		Designation		Modification description
		M1 К		Fan is equipped with a backdraft damper for back flow preventing.
		M1 L		The motor is equipped with ball bearings for long service life (appr. 40 thousand hours) and fan mounting at any angle. The bearings are maintenance-free and contain enough grease for the entire operating period.
		М1 turbo		High-powered motor.
		M1 press		5-blade low-noise impeller with improved aerodynamics for higher fan capacity.
		М1 12		Modification with low-voltage motor. 12 V AC power supply.
		M1T		Equipped with a regulated timer with the operating time from 2 to 30 minutes.
		M1TH		Equipped with a timer with the operating time from 2 to 30 minutes and a humidity sensor with the threshold value from 60 to 90%.
		M1V		Equipped with a pull cord switch.
		М1VТ		Equipped with a pull cord switch and a regulated timer with the operating time adjustable from 2 to 30 minutes.
		M1VТН		Equipped with a pull cord switch, regulated timer with the operating time adjustable from 2 to 30 minutes and a humidity sensor with the operating threshold range from 60% to 90%.
		М1ТР		Equipped with a regulated timer and a motion sensor with the sensitivity area from 1 to 4 m and the detection angle up to 100°).
